Ultrasonic Machining Tool Holder - HSK Series HSK-A63

HSK Series
♦ Spindle tilt is 1/10; shank tilt is 9.98
♦ Dual restraint
♦ Provide a hollow design, the broaching mechanism penetrates into the arbor, tightens and expands, and fits the main shaft
♦ Usually applied in high speed, high precision machining and for industries like aerospace, automobile, and precision mold machining industries
♦ HSK Series is a mainstream in Europe

Product Information

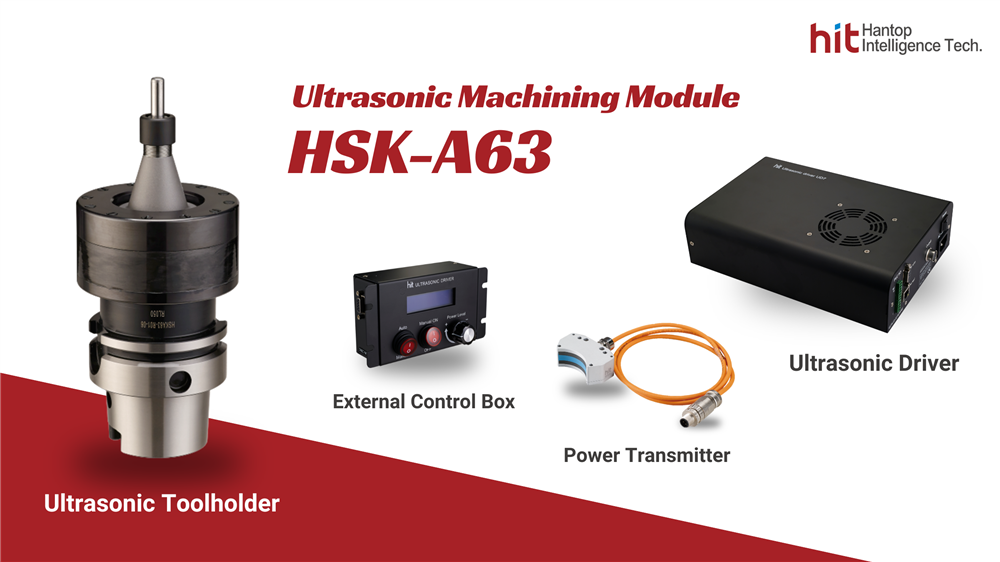

*The ultrasonic toolholder module includes: an ultrasonic driver, an ultrasonic toolholder, a power transmitter, and an external control box.


HSK-A63 Ultrasonic Machining Module: Solution to Advanced Material Processing

1. The non-contact/wireless power transmission system allows high rotation speeds, suitable for high-precision advanced-material machining.

2. Modular design provides convenience and flexibility during installation.

3. Ultrasonic high-frequency vibration delivers high-efficiency and high-quality machining performance.

4. Ultrasonic vibration reduces cutting force, effectively extending tool life.

5. Intelligent automatic frequency-tracking system is developed for advanced materials and compatible with various machining tools.


HSK-A63 Ultrasonic Toolholder: Product Specification
Model HSK-A63
Balance Quality Grade G2.5
Run-out (4D) ≤ 5 µm
Operating Frequency 20 ~ 34 kHz
Max. Rotation Speed 24,000 RPM
Collet Types SK06 / SK10 / ER20
(measured with high-precision collet)
Weight 2 kg
Automatic Tool Change (ATC) YES
Coolant Through Spindle (CTS) 70 bar



HSK-A63-R01-SK06 Ultrasonic Toolholder: Product Drawing & Dimensions





HSK-A63-R01-SK10 Ultrasonic Toolholder: Product Drawing & Dimensions





HSK-A63-R03-ER20 Ultrasonic Toolholder: Product Drawing & Dimensions
