Ultrasonic Machining Tool Holder - HBT Series Slim Type HBT-40-R30

HBT Series
♦ Well-applied to Deep Drilling Process
♦ Balance Quality Grade G2.5
♦ High Precision Runout <5 μm
♦ Special Ultrasonic Slim Type Tool Holder
♦ Slim Design Prevents Interference and Maintains Precision
♦ Available for CTS
♦ High Rotation Speed to 24,000rpm
♦ Great for Cavity Feature
♦ Dual Restraint
♦ Perfect Choice for Tight Space Applications

Product Information



Well-applied to Deep Drilling Process

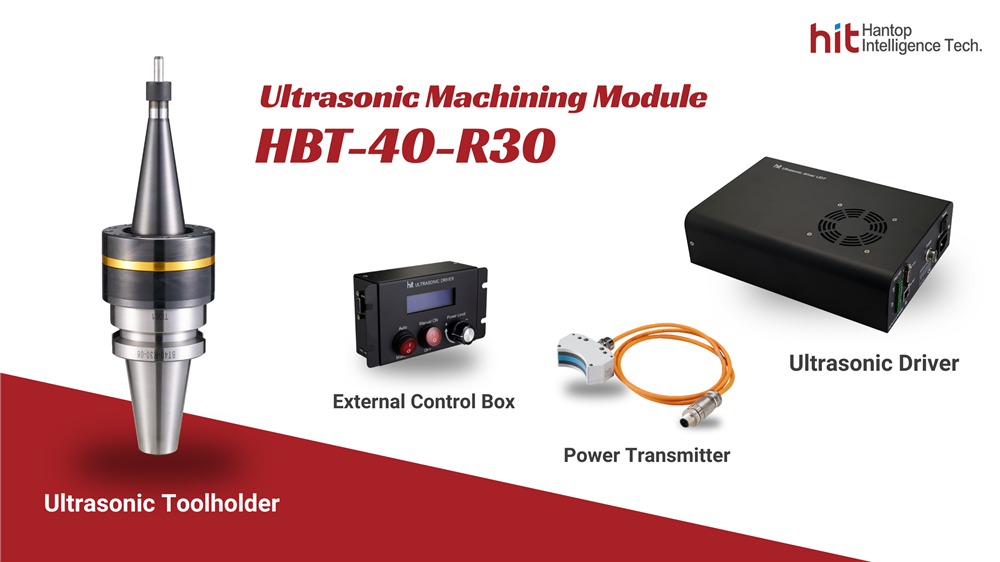

Special Ultrasonic Slim Type Tool Holder- BT40-R30-06

Reduce nose diameters and extend nose length for less interference in 5-axis CNC machining. Ideal choice for confined space with deep hole drilling and micro machining.
The slim type of tool holder combined with ultrasonic machining technology makes it more suitable for extremely brittle materials in semiconductor industries, such as ceramics, quartz, Si materials.


1. High Rotation Speed for high precision advanced materials machining
Hantop Intelligence Technology Ultrasonic Machining Module adopts Non-contact power transmission technology. Without the limitation of spindle rotation speed and consumables, the tool rotation speed can reach more than 24,000 rpm (depends on different types of tool holder), so it can enable more process parameters for operators to choose and process the complex workpieces more economically.

2. Plug and Play Installation Convenience and Flexibility
Combined unique plug and play module type design and innovation non-contact power transmission technology, HIT Ultrasonic Machining Module bears the flexibility to be easily side added-on various kinds of CNC machine, such as milling machine, drilling machine, even robot arms. It is not necessary taking enormous costs of time and money to introduce a new technology. Our module allows manufacturers Introduce to production in just one day and with no need to buy a whole, expensive, and bulky machine.

3. Hi-Efficiency and Hi-quality performance with the use of ultrasonic machining
With the use of high frequency ultrasonic vibration passing via patent tool holders to tools, it can subtly remove hard and brittle materials like ceramics and prevent edge-cracks from improper cutting force between tools and materials. Therefore, it can outperform high quality by significantly improving surface quality of cutting edge and saving the usage of materials.

4. Prolong Tool life by reducing cutting resistance
Unlike the conventional CNC machining, the rotary motion of the tool and the additional vibration in the ultrasonic machining are superimposed on each other, reducing the cutting resistance by 40%. The tool life will also be prolonged since the cutting resistance has been reduced.

5. Suitable for Special Precise Features Demand in particular advanced materials
HIT Ultrasonic Machining Module is poised to various types of special features in advanced materials machining. Some features, such as ceramic micro drilling and Nomex honeycomb V cut, may be extremely difficult machined by conventional CNC method or require the use of special purpose machine. Our Module can significantly enhance the quality and efficiency by eliminating chipping-width, dissipating cutting heat, or enlarging materials removal more effectively via dense and subtle ultrasonic vibration. We have also developed special type of tool holders for specific use, such as disk type of tool holder for Nomex cutting and shrink fit type of tool holder for 5-axis CNC precision machining.

6. Cost- Effective Intelligent Tracking System for advanced materials machining
Hantop intelligence Technology is a cost-effective intelligent ultrasonic machining module with automatic identification and tracking system, which can search and lock the most suitable resonance frequency simultaneously with a wide range of tools. It enables customers to start production online with the shortest learning time and has high flexibility to collocate with diverse tools.


Model R30 Series
Runout(4D) <5 μm
Operating Freq.  20 kHz ~ 32 kHz
Max. Spindle Speed  24,000rpm
Collet Types SK 06
Taper HSK-A63、HBT-40
Weight 2.2 kg
ATC Yes
CTS 70 bar
*Measured with high-precision collet
