Semiconductor Silicon Carbide (SiC) Wafer Grinding

📈 Grinding wheel lifespan increased by up to 70% ➡️ Significantly reducing diamond wheel consumable costs and drastically minimizing downtime for wheel replacements.

☑️ SiC Wafer Grinding: Analyzing Machining Pain Points in Semiconductor Manufacturing



 1. Ultra-High Hardness Leads to High Time and Consumable Costs



  • Extremely Low Machining Efficiency:
    Using conventional grinding methods to thin SiC wafers results in a very low material removal rate (MRR). Machining time is often several times longer than that of traditional silicon (Si) wafers.

  • Severe Tool Wear:
    To process SiC, expensive diamond grinding wheels are typically required. Yet, even diamond wheels wear out rapidly when grinding SiC, causing consumable costs to skyrocket and requiring frequent machine downtime for wheel replacement or dressing.



2 . Extreme Brittleness Causes Breakage and Micro-cracks



  • Edge Chipping:
    During edge grinding or thinning, excessive grinding resistance or improper feed rate control can easily cause edge chipping, often leading to the immediate scrapping of the entire wafer.

  • Surface and Sub-Surface Damage (SSD):
    Intense grinding stress can easily generate invisible micro-cracks inside the wafer (Sub-surface damage, SSD). These hidden internal defects expand during subsequent high-temperature epitaxial processes, severely dragging down the final wafer yield rate.


 3. Grinding Heat Accumulation and Surface Flatness Control



  • Thermal Stress Deformation:
    Grinding ultra-hard SiC generates immense frictional heat. If the coolant fails to dissipate the heat promptly, thermal stress will cause wafer warpage, compromising overall flatness.

  • Difficulty in Achieving Desired Smoothness:
    Grinding such a hard and brittle material into a flawless, mirror-like surface for epitaxial growth is the ultimate test of machine rigidity, spindle stability, and the fine-tuning of machining parameters.




☑️ SiC Wafer Grinding: Machining Information




Machining Information

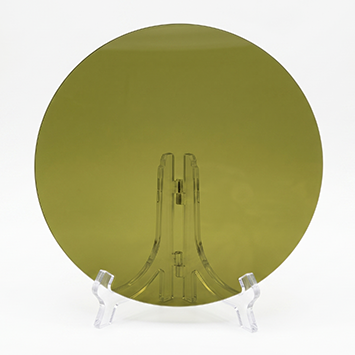

 Materia     Monocrystalline silicon carbide
 Feature     Wafer Grinding

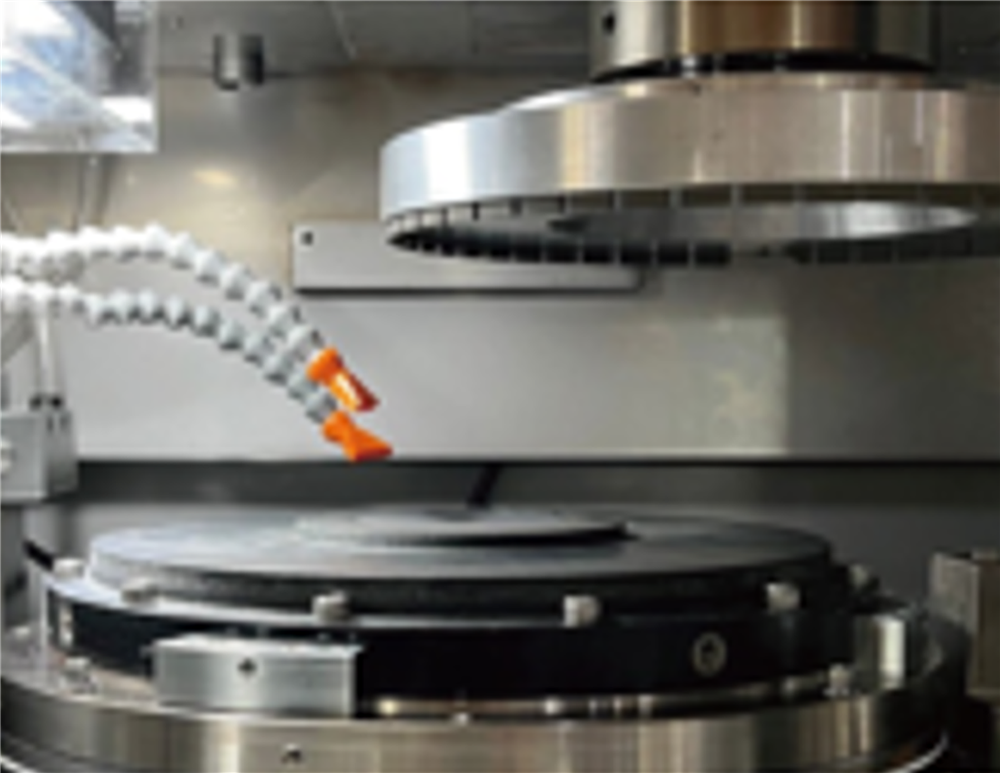

 Grinding equipment     Ultrasonic Wafer Grinding Spindle

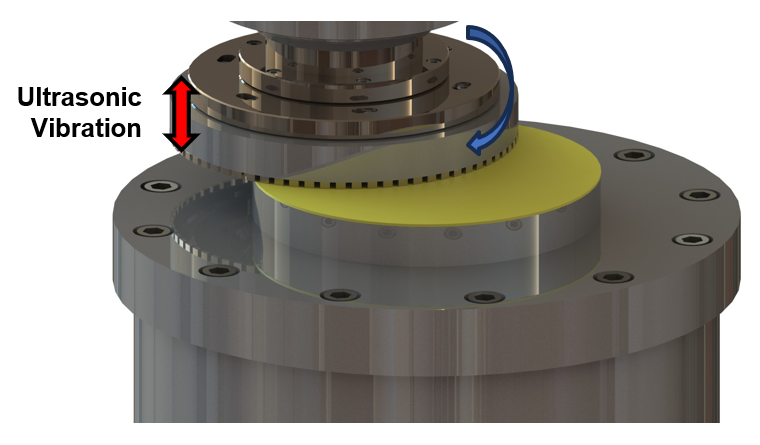

☑️ SiC Wafer Grinding: Ultrasonic Wafer Grinding Spindle





Ultrasonic Wafer Grinding Spindle: Three Core Advantages



  • Highly Efficient Micro-Cutting Mechanism:
    High-frequency vibration accelerates coolant penetration to effectively control cutting temperature.

  • Superior Chip Removal & Extended Wheel Lifespan:
    Axial and radial vibrations reduce wheel loading, keeping diamond grits sharp and extending wheel lifespan.

  • Energy Savings & Workpiece Protection:
    It lowers cutting resistance and minimizes sub-surface damage (SSD), drastically reducing subsequent process time and energy usage.




📧 Email us today for ultrasonic process solutions for SiC wafer grinding!




☑️ SiC Wafer Grinding: Machining Benefits

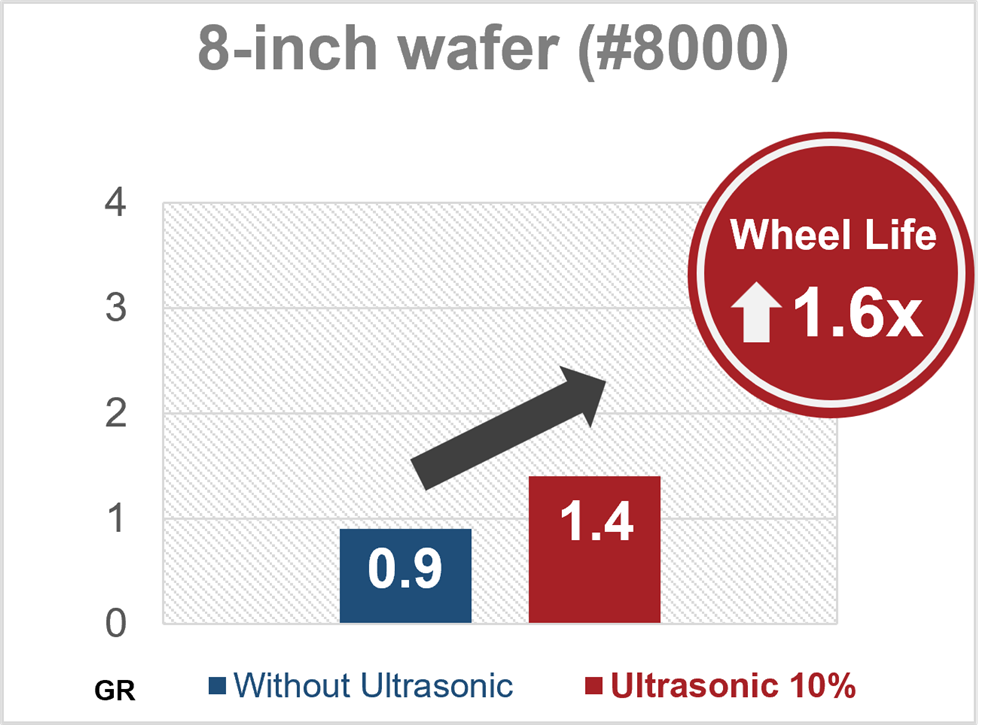

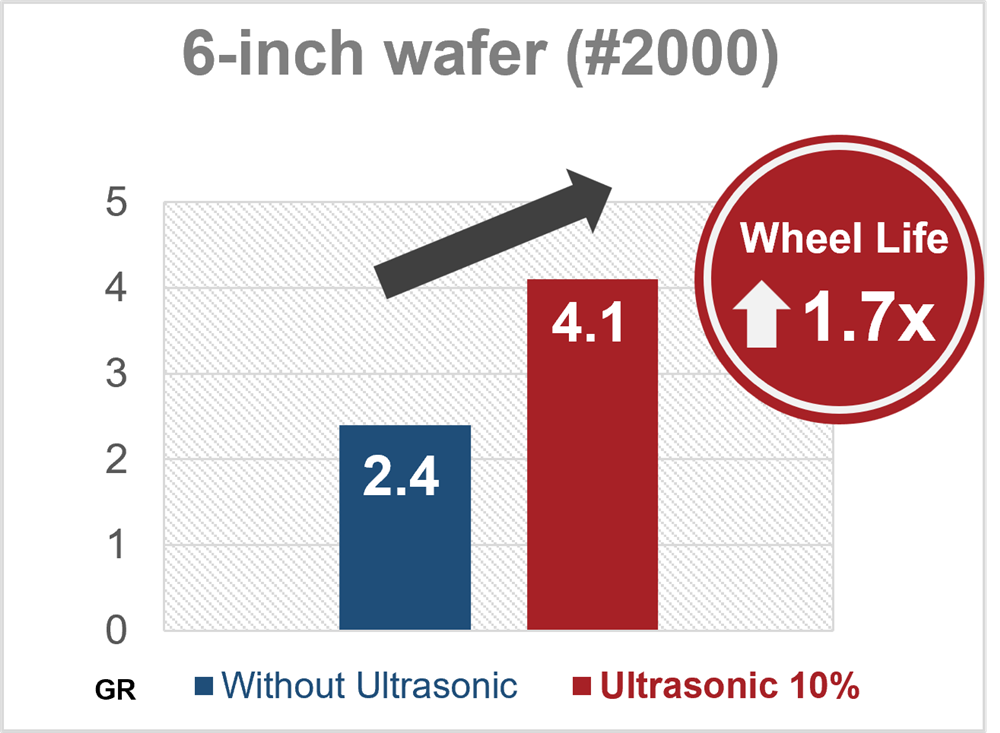

Grinding wheel life





  6-inch (#2000) 8-inch (#8000)
Without Ultrasonic Ultrasonic 10% Without Ultrasonic Ultrasonic 10%
  GR  2.4 4.1 0.9 1.4
  UP    71%   56%


 yes Hit Ultrasonic Process Solution : Grinding wheel life extended by up to 70%

☑️ SiC Wafer Grinding: Key Applications in Third-Generation Semiconductors



 1. SiC Material Properties: Extreme Hardness and Stability



  • Ultra-High Hardness & Wear Resistance:
    With a Mohs hardness of 9, SiC is second only to diamond and boron carbide in nature, offering exceptional wear resistance.

  • Extreme Environmental Stability:
    It boasts remarkable chemical and mechanical stability, along with excellent heat and corrosion resistance.

  • Outstanding Optoelectronic & Thermal Performance: Featuring low power consumption and high power capabilities, SiC efficiently handles high voltage and heat—the main reasons it is a highly sought-after third-generation semiconductor material.



 2. SiC: The Ultimate Backing in Wafer Processing



During wafer manufacturing (e.g., etching or thin-film processes), process chambers require highly precise components to support and protect the wafer. Here, SiC is the optimal choice.

SiC is frequently used to manufacture key components such as showerheads, electrostatic chucks (ESCs), wafer pedestals, and, most importantly, wafer susceptors. Particularly in MOCVD (Metal-Organic Chemical Vapor Deposition) chambers, the SiC susceptor securely holds the substrate. It effectively absorbs and transfers heat to facilitate thin-film growth while avoiding unwanted chemical reactions with process gases. It is the perfect backing for protecting wafers and promoting epitaxial growth.



 3. SiC Grinding Technology: The Decisive Factor in Semiconductor Quality



Since the susceptor directly contacts the substrate, its surface flatness, thickness uniformity, and grinding quality directly impact the epitaxial layer's growth quality. Inadequate grinding can leave micro-defects on the susceptor surface, causing uneven heat conduction and potentially ruining highly valuable wafers. Therefore, precision grinding technologies for ultra-hard SiC are not only top priorities in semiconductor equipment manufacturing but also the driving force behind boosting third-generation semiconductor yield and capacity.
